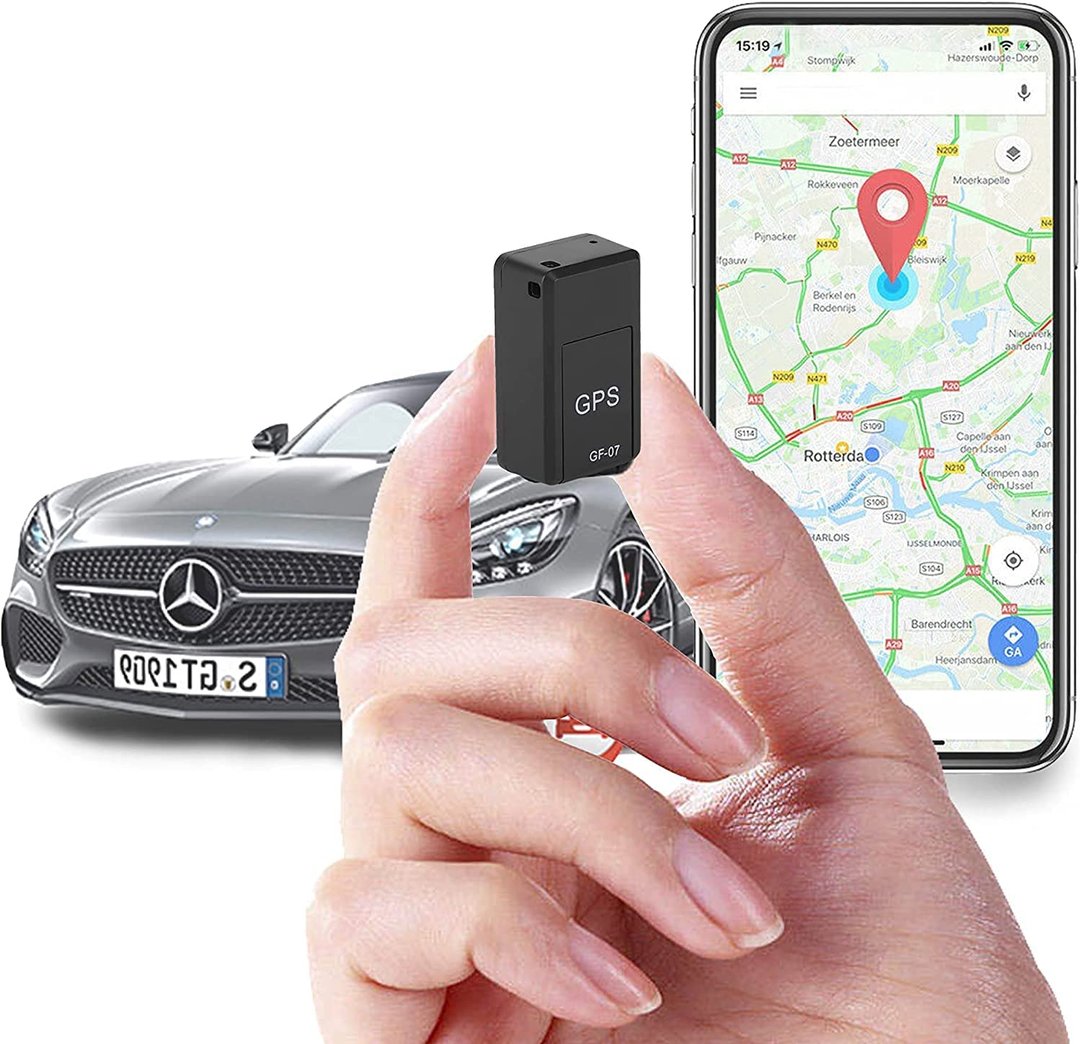

Magnetic Mini Worldwide Gps Tracker

What is a bigger pain than being unable to locate your car? Even more so if it seems to have been stolen. Thankfully, there is a solution in the form of the Magnetic Mini GPS Tracker! You have the choice to covertly lock your car against theft or loss thanks to its small size. Given that 1.5 million vehicles are stolen each year, this is excellent news! You will constantly be aware of the whereabouts of your car. Avoid becoming anxious and frustrated!

The GPS tracker has a worldwide reach! No subscription is required!

Method of Use:
Preparation: Insert a SIM card and a mini memory (TF) card.
Boot: Open the card cover as directed, insert the SIM card and memory card. The device will power on automatically. The red light will flash 4 times, then after 30 seconds it enters standby mode.
Indicator Light: Stays on for boot, flashes when battery is low.
Bind Master Number: Send a text “000” from your phone to the locator number. The device will reply. Then set: Binding + master number.
Separate Recordings: Send “555” via SMS to the locator number. Device replies: [Snd; recording started].
Voice Control Callback: Send “666” to the locator number. Device replies: [DT; sound monitor set, alarm telephone callback activated]. When noise exceeds 40 dB, the locator will call the preset number automatically.
GPRS Location Query: Send “777” to the locator number. The device will reply with a Chinese address + Google Maps link for precise location.
Product Voice Query: Call the SIM number inside the locator directly. You will hear the surrounding sounds discreetly (device makes no sound or light).
Location Path Query: Send “102” to the locator number. Device replies with account, password, and website for tracking.
Delete TF Card Content: Send “445” to the locator number. Device replies: TF cleaned successfully.
Host Status: Send “888” to the locator number. Device replies with: feature status, battery capacity, bound number, signal strength, frequency, GPRS, TF card capacity, etc.
Restart Device: Send “999” to the locator number. Device will reboot successfully within 1 minute.
Shut Down: Send “444” to the locator number. Device replies: Reset; all tasks cancelled.
Battery Query: Every reply includes power status automatically.

Note: This product can also be externally connected with smoke alarms, door magnetic sensors, shoe bags, waterproofing, or customized functions. Please contact dealer for details.

Specifications:
Appearance Size: 3.5 × 2.0 × 1.4 cm (L × W × H)
Charging Input: AC 110–220V, 50/60 Hz
Charging Output: DC 5.0V, 300–500 mA
Battery: 3.7V 400mAh Li-ion
Standby Time: ~12 days; Working Time: 4–6 days
Expansion Card: Mini TF card
Video Resolution: 320 × 240
Photo Resolution: 640 × 480
Talk Time: 150–180 minutes
Format: GSM / GPRS
Storage Temperature: -40°C to +85°C
Working Temperature: -20°C to +55°C
Humidity Range: 5% – 95% non-condensing
GPRS: Upload 60, TCP/IP
Operating Voltage: 3.4–4.2V DC
Standby Current: ~2.5 mA
Acoustic Current (open): ~30 mA
Call Current: ~150 mA
GSM Positioning Time: ~25 seconds
Basic Parameters: GSM850/900/1800/1900 MHz (quad-band)
Supported Countries: China, UK, France, Germany, Netherlands, Italy, Spain, Brazil, Portugal, Denmark, Russia, Poland, Turkey, Hungary, Thailand, Indonesia, Malaysia, Vietnam, Myanmar, Pakistan, Iraq, Saudi Arabia, Greece, Kazakhstan, Mongolia, UAE (Dubai), etc.

Frequently Encountered Problems:
The host cannot be reached. Ensure SIM card is inserted and the device is rebooted. If no signal, check network coverage.
TF memory card not storing? Reformat the TF card and try again.
Cannot charge? Check GSM SIM card and charging setup.
What is the master control phone? It is the main phone number used to monitor and control the alarm system.

Special Warning:
When battery power drops below 5%, please charge immediately. If left uncharged for too long, deep discharge may occur, damaging battery life permanently. For long-term storage, charge the battery to 60–80%, disconnect power, and recharge every 3 months to maintain performance.
